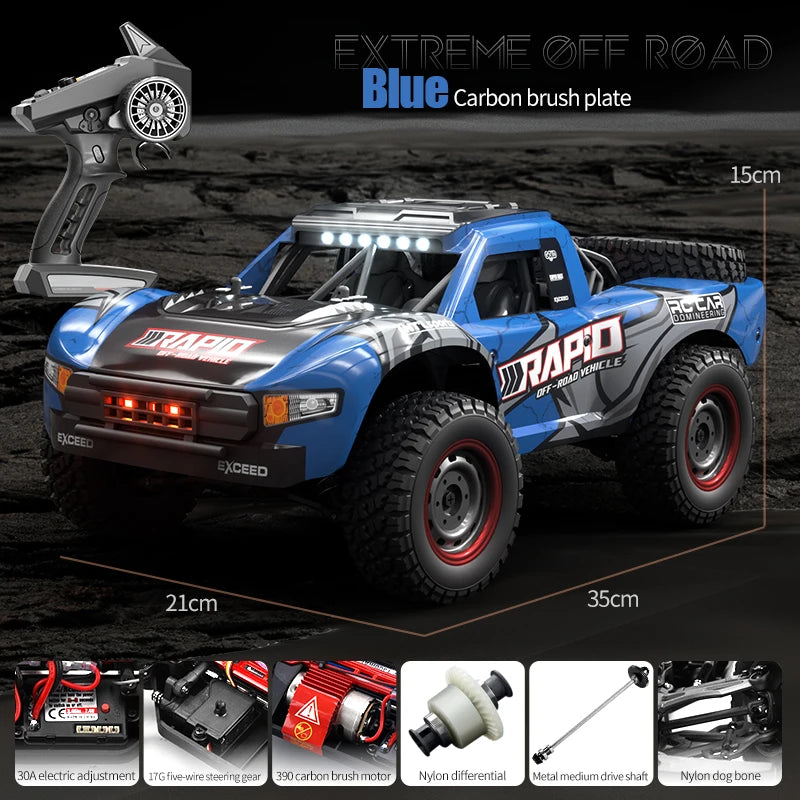

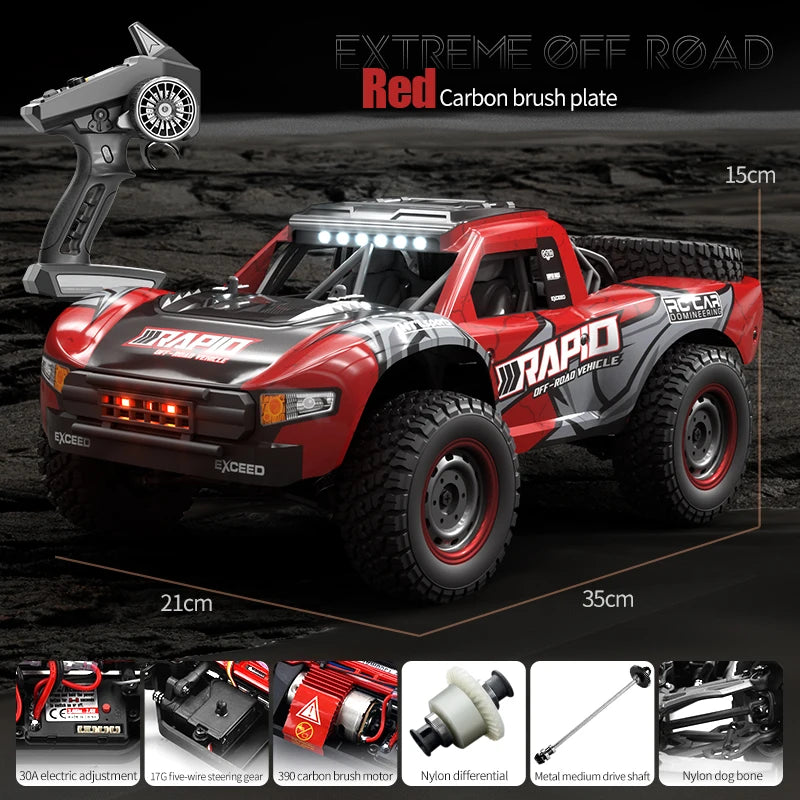

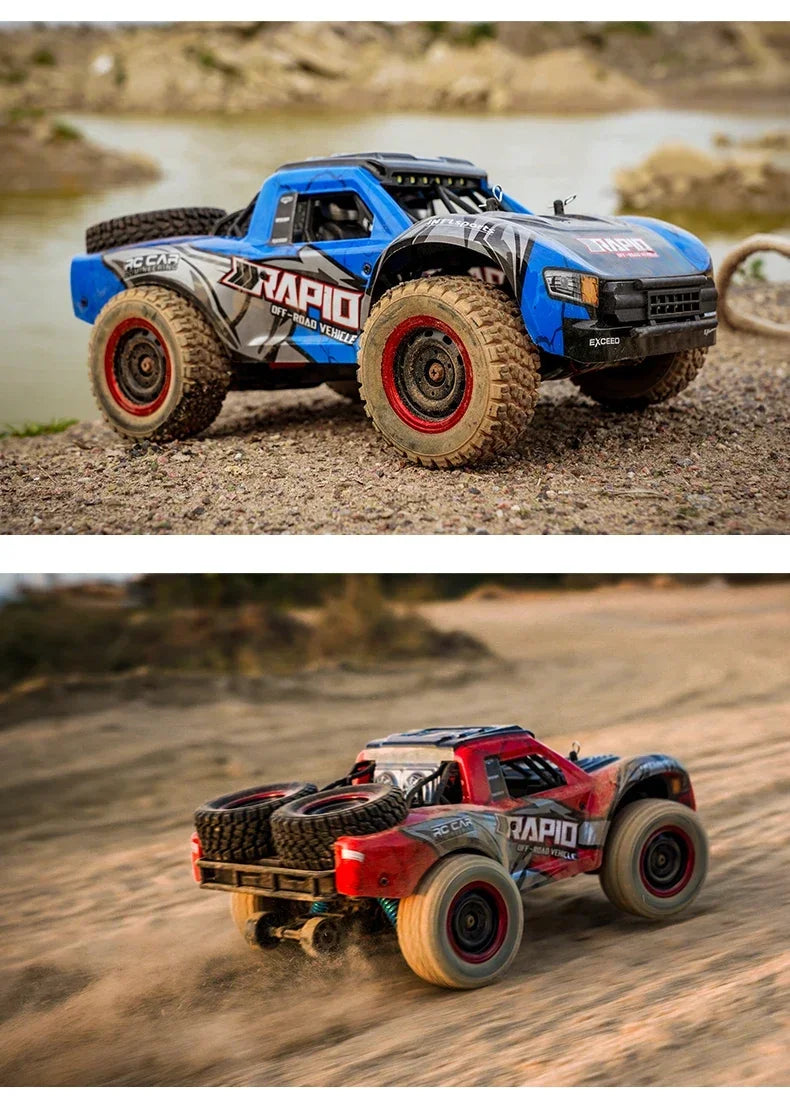

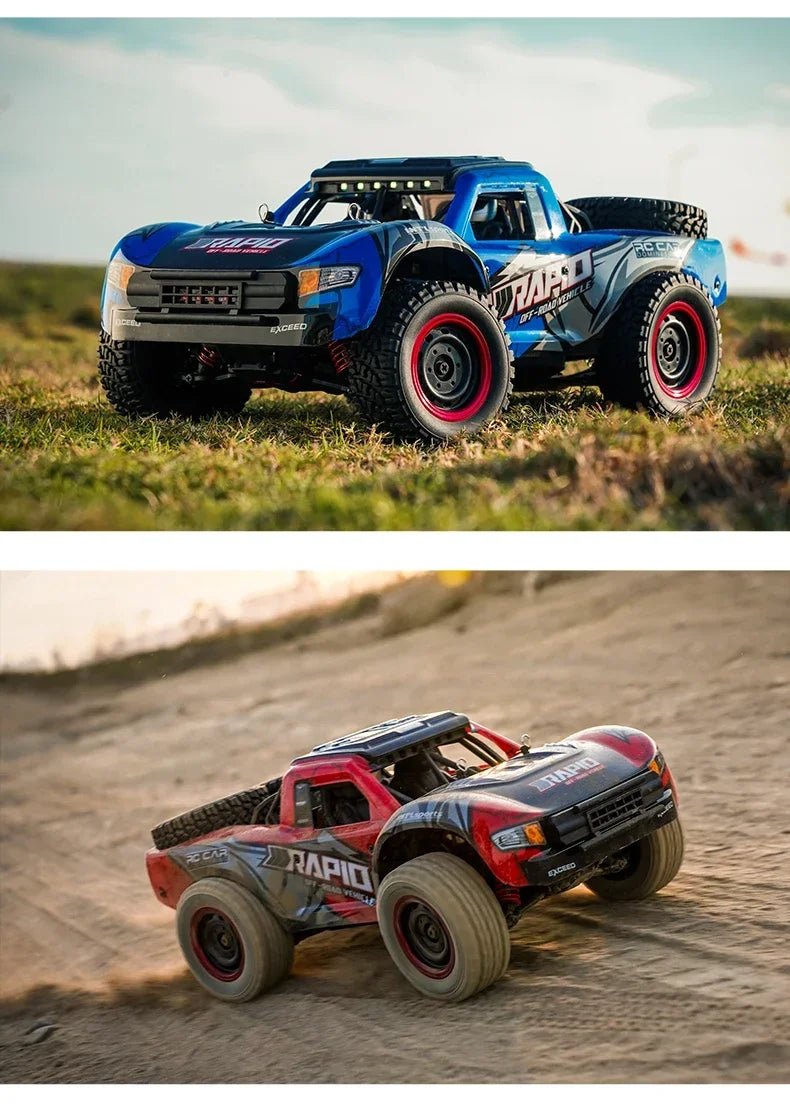

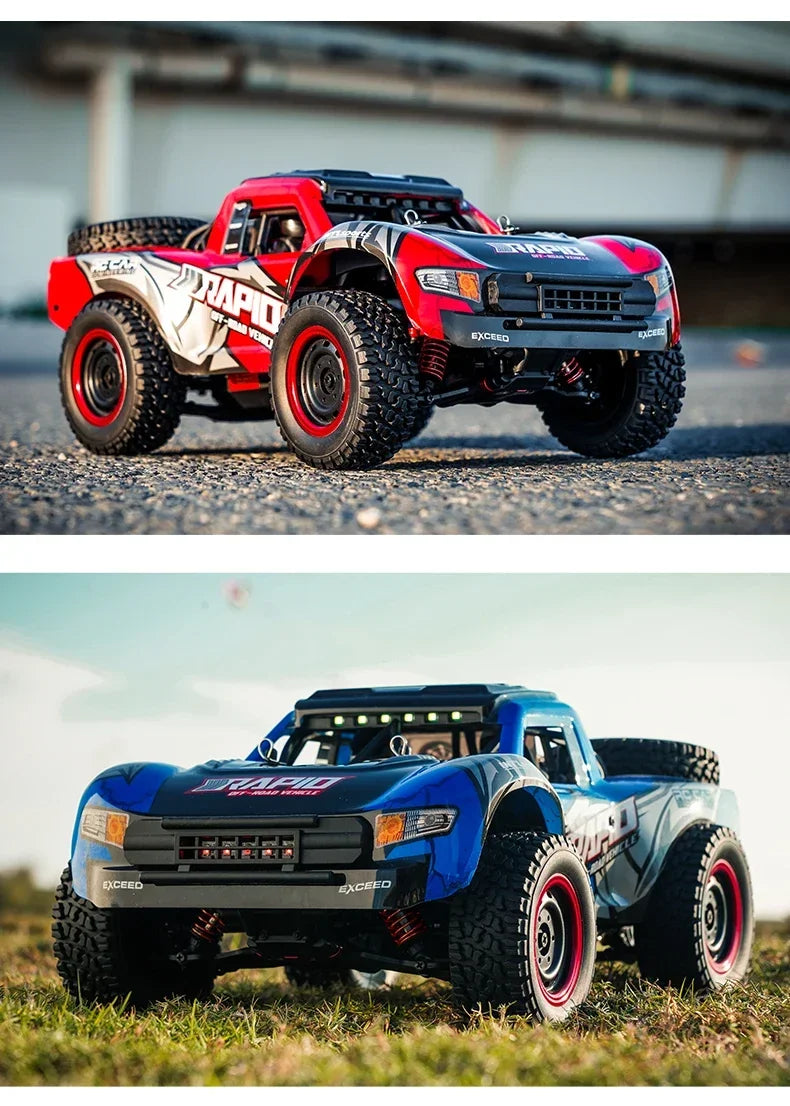

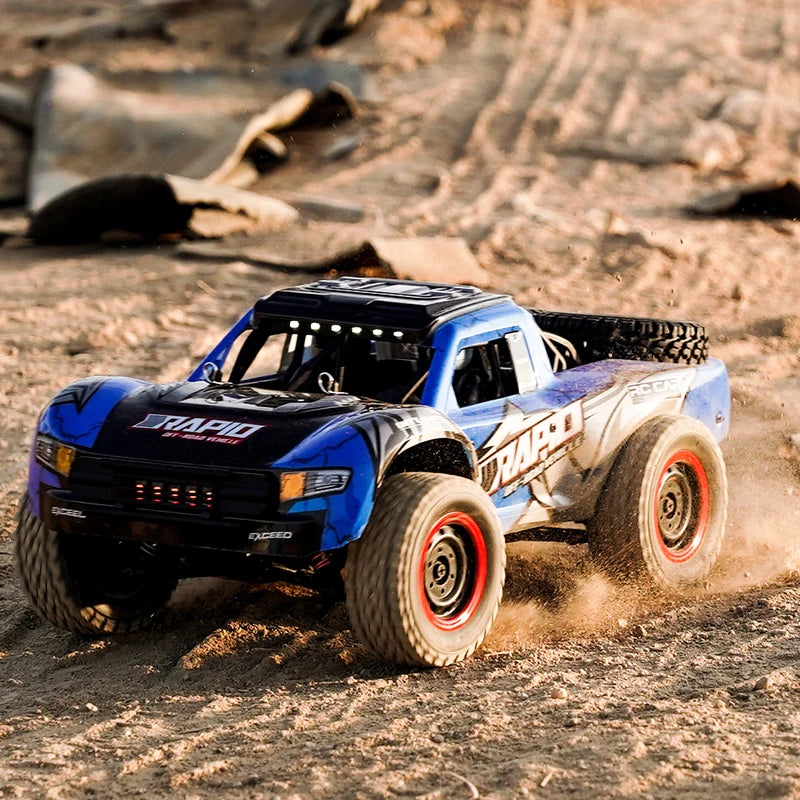

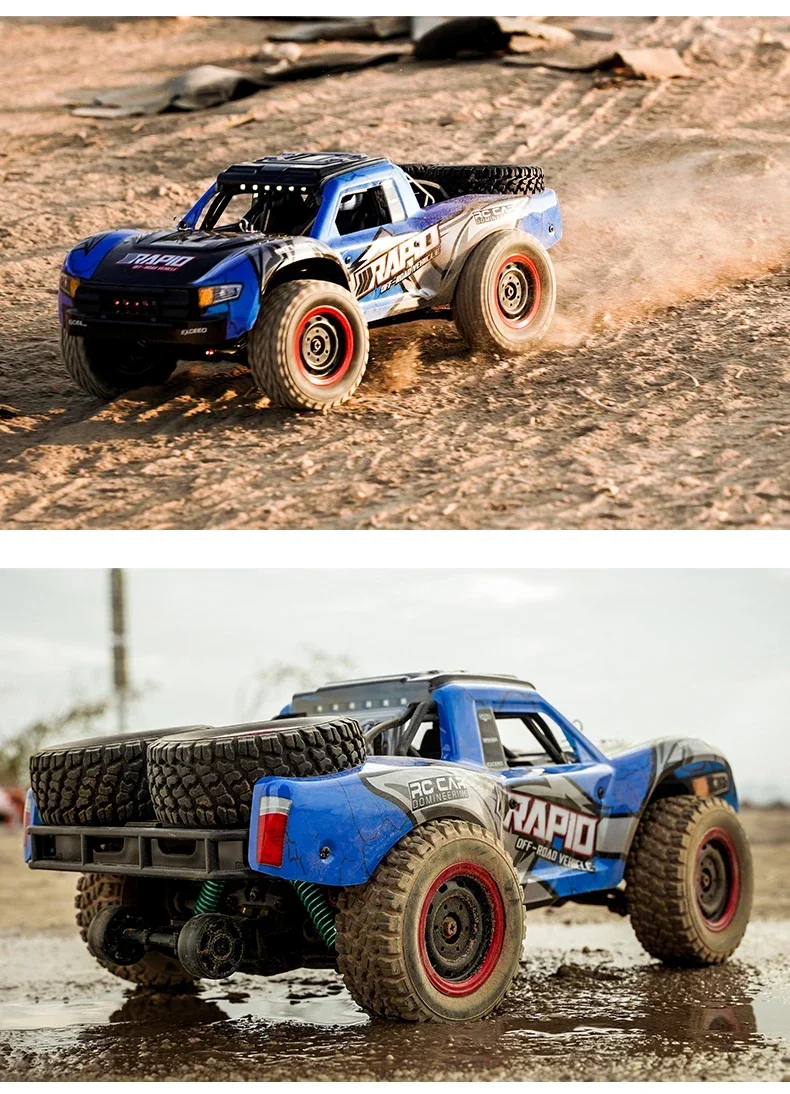

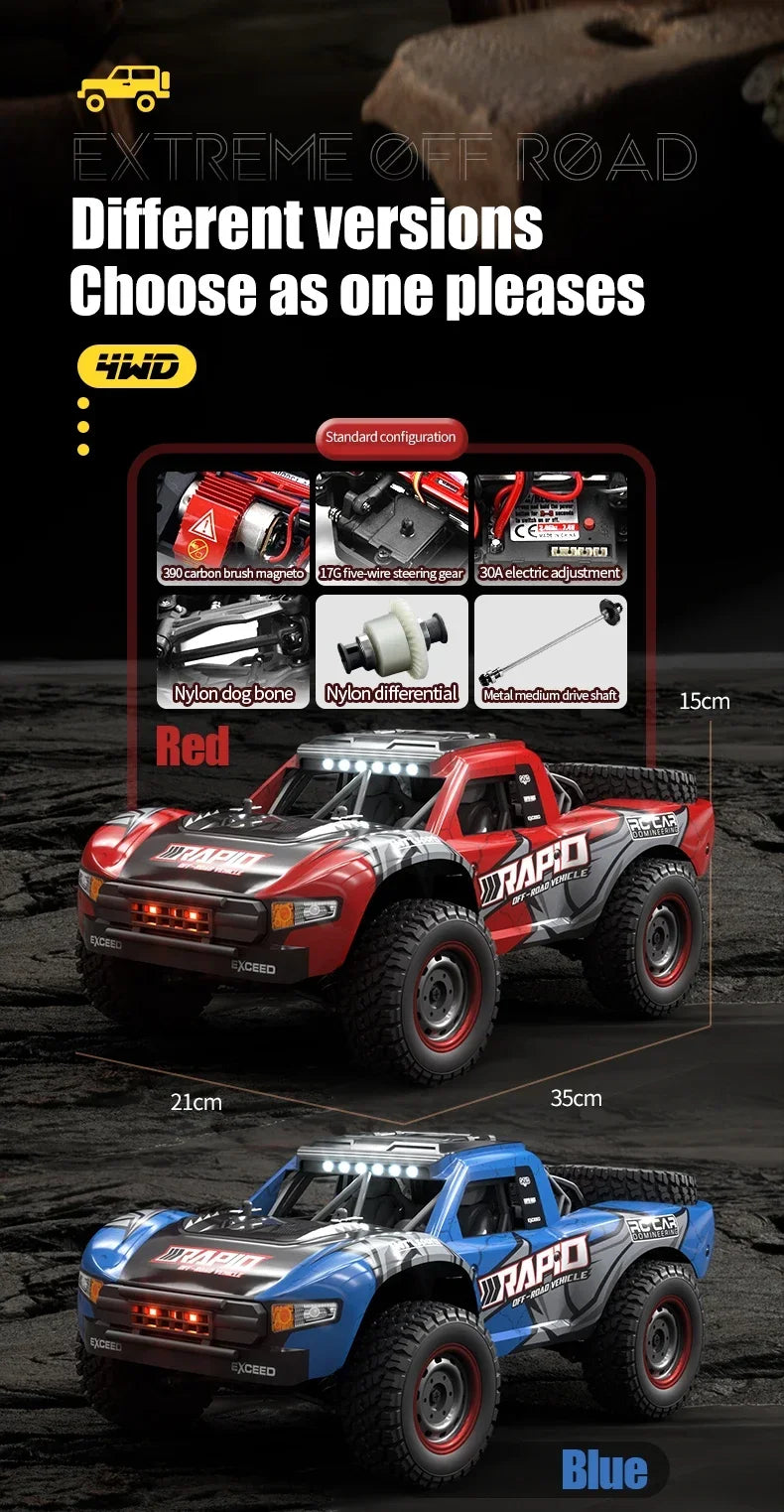

Red and Blue Brushed version

DESCRIPTION:

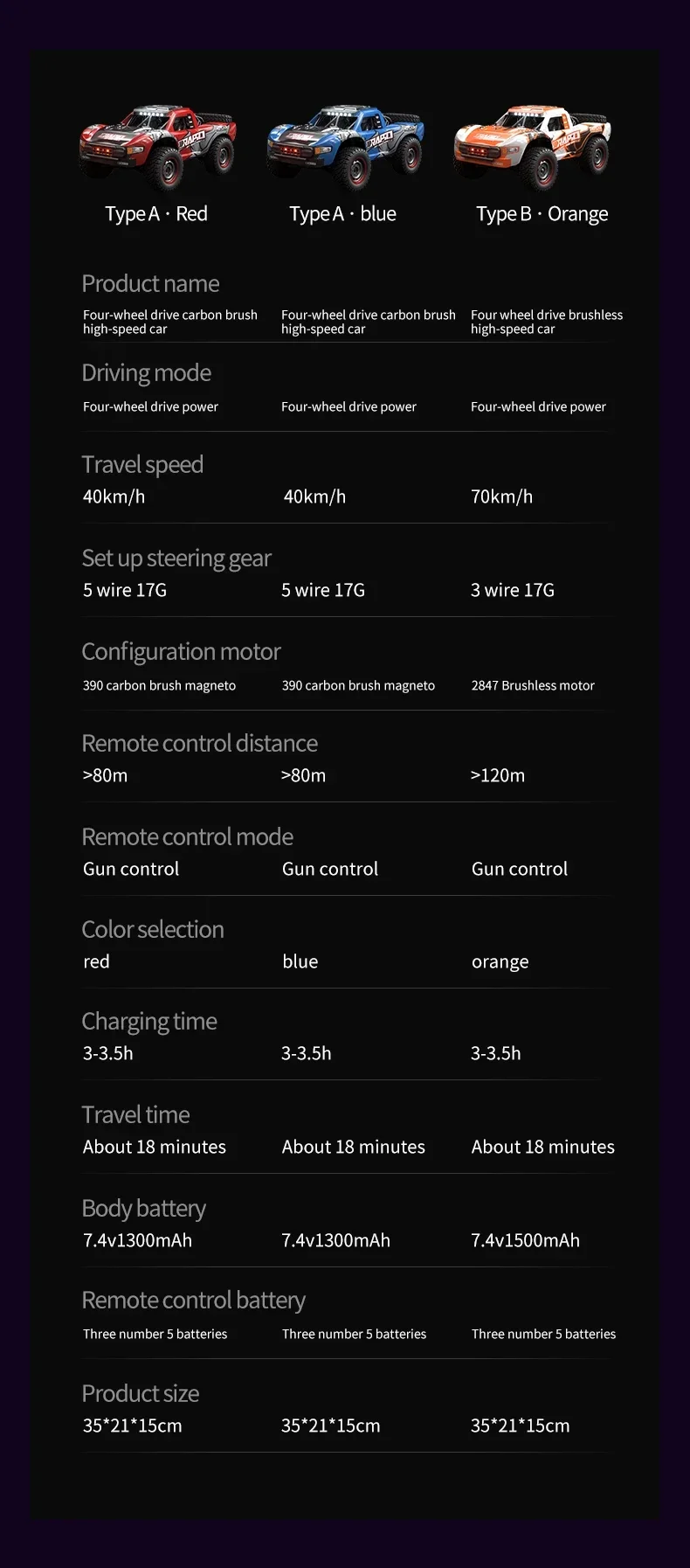

Product Name: four-wheel drive pickup off-road vehicle (brushed version)

Product configuration: electric all-wheel-drive SUV

Product material: Hardware + electronic components + plastic

Product size: 34.5*20.5*14.8CM

Body weight: 1160g

Color: Blue/Red

Body battery: 7.4V, 18650-1300mAh

Remote control battery: 3*AA (not included)

Charger: USB balance charge

Usage time: 15-18 minutes

Charge time: 3-3.5 hours (USB balanced charge)

Remote control distance: ≥120 meters

Motor: RC390 high speed carbon brush strong magnetic (magnetic protection + heat sink)

Electric modulation/Reception: 35A electric modulation/reception integrated control (anti-splash)

Steering gear: three-wire 17G digital steering gear

Speed: 48 km/h (top speed)

FEATURES:

1, Using the simulation structure design, with the control feeling of the real car, to achieve full scale continuously variable speed, high-speed driving, rapid acceleration, deceleration, braking, reversing, left, right turn;

2, applicable site: flat, sandy, mud, grass.

3, four-wheel drive: before and after the vertical spring shock absorption, double fork arm independent suspension system;

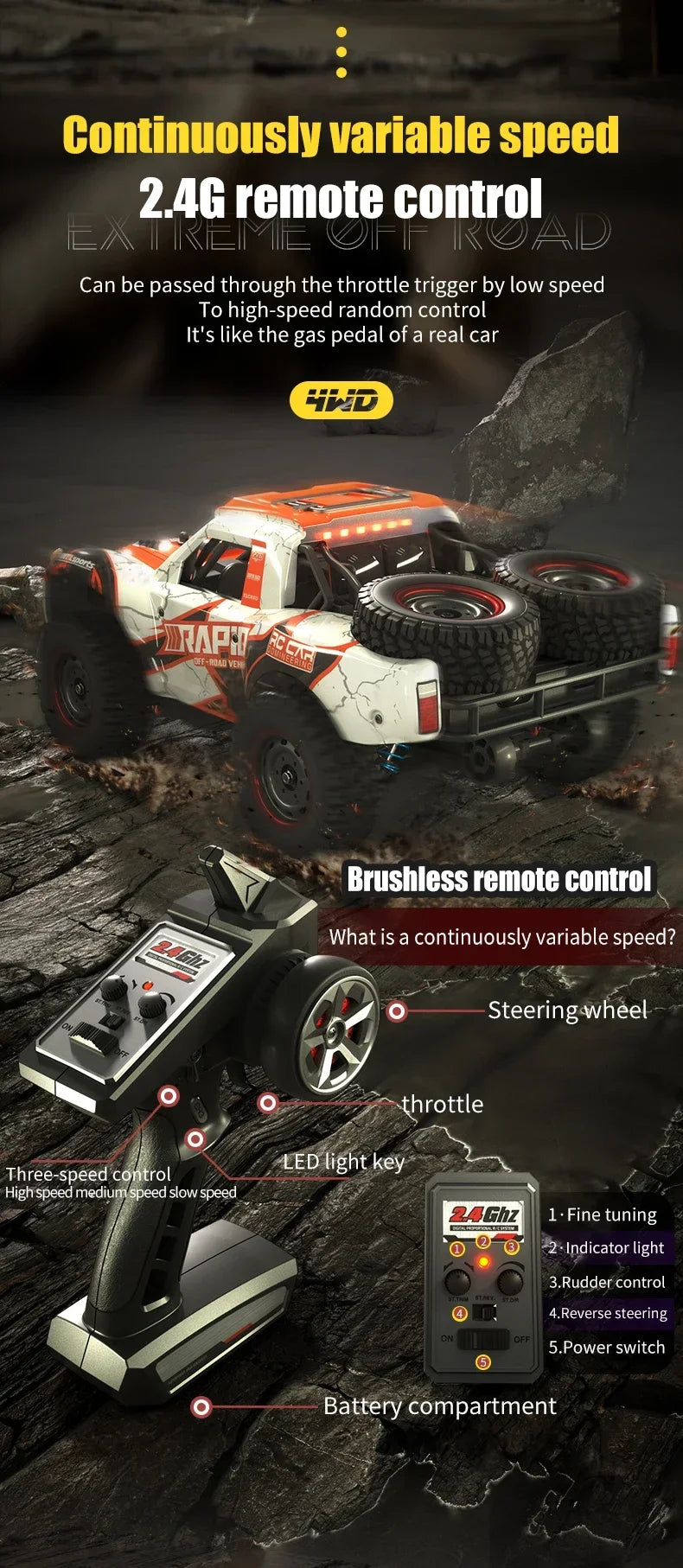

4, 2.4G full proportional synchronous remote control system. Full throttle/steering;

5. 2.4G anti-splash four-way 30A integrated electric adjustment/reception;

6, front wheel cross ball head universal joint drive shaft, rear wheel split dog bone drive shaft;

7. 17G steering gear of the fifth line;

8, super battery power: 7.4V, 18650-1300mAh Li-ion battery (T plug), discharge rate 10C;

9, the whole car adopts 16 ball bearings;

10, metal second floor, metal front and rear arm code, metal drive shaft;

11. The car shell adopts high toughness explosion-proof PVC car shell;

12. The car shell is equipped with LED headlight, LED roof light and LED tail roof light; (three-gear mode: steady on, slow blinking, fast blinking);

13, simulation off-road tires, strong grip;

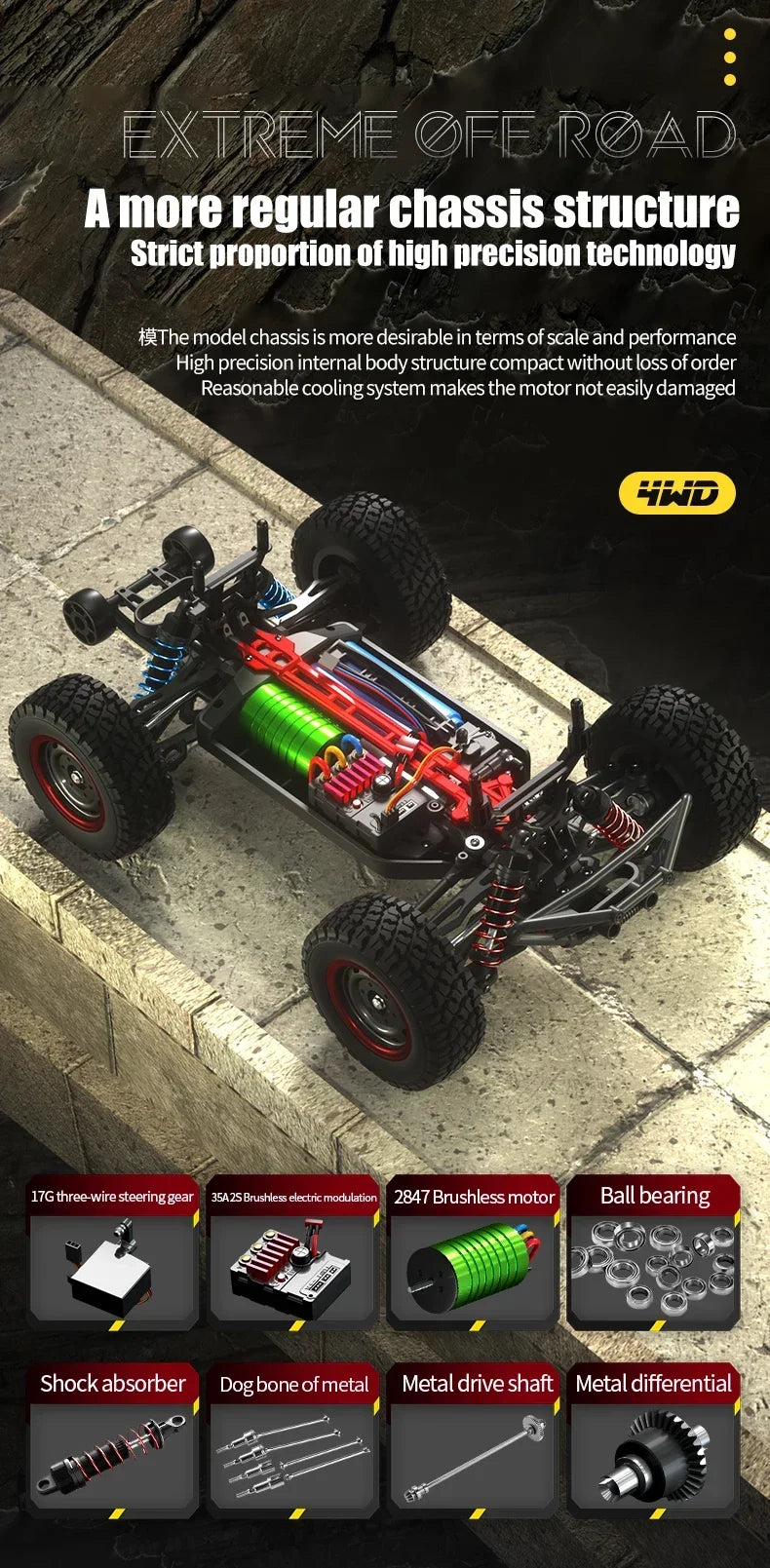

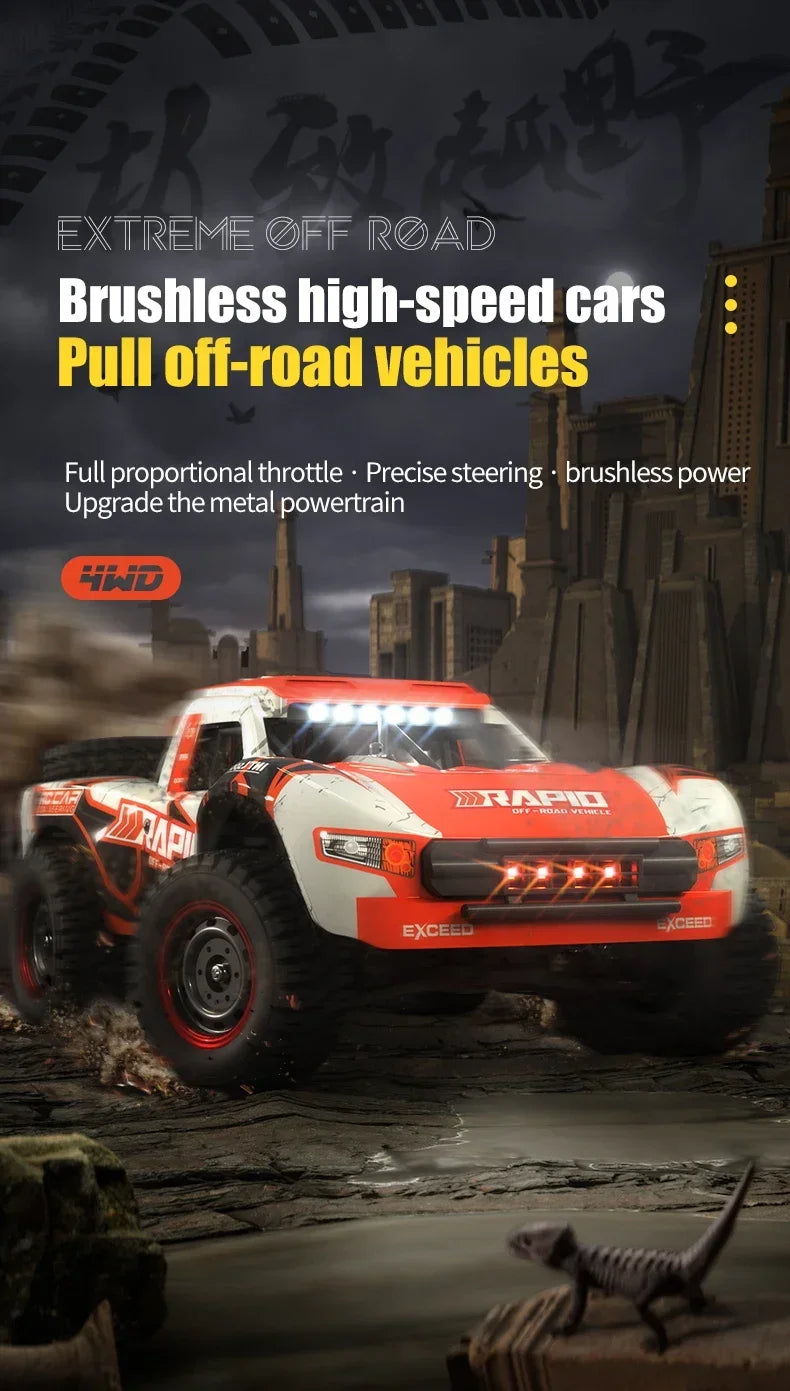

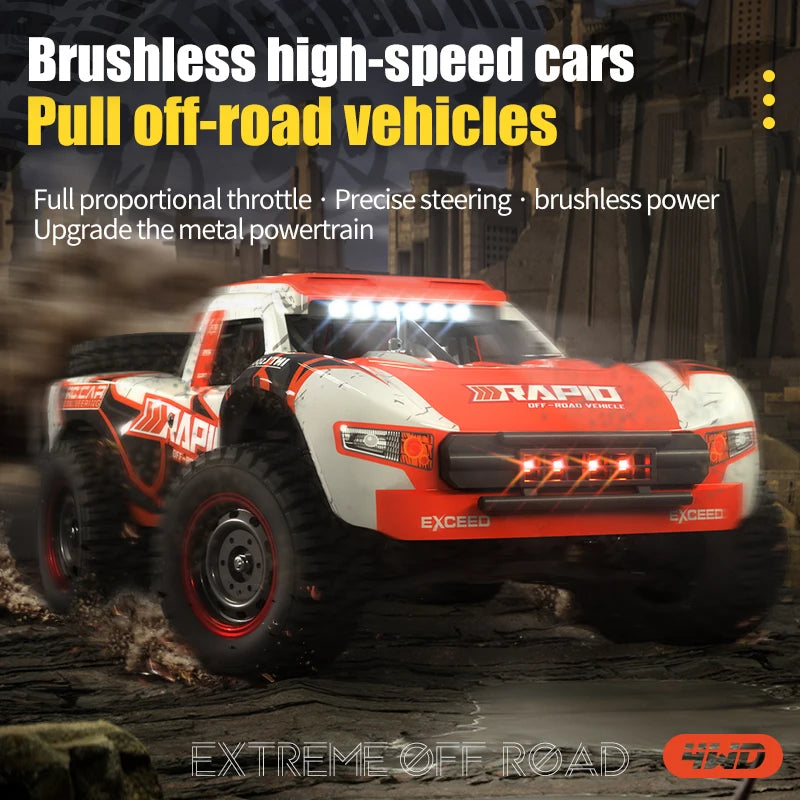

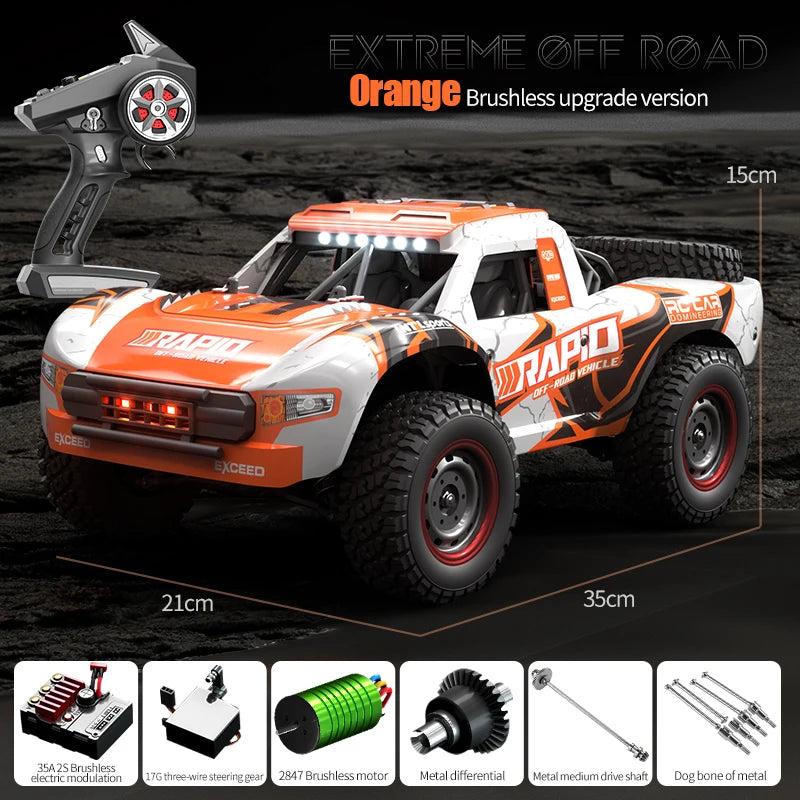

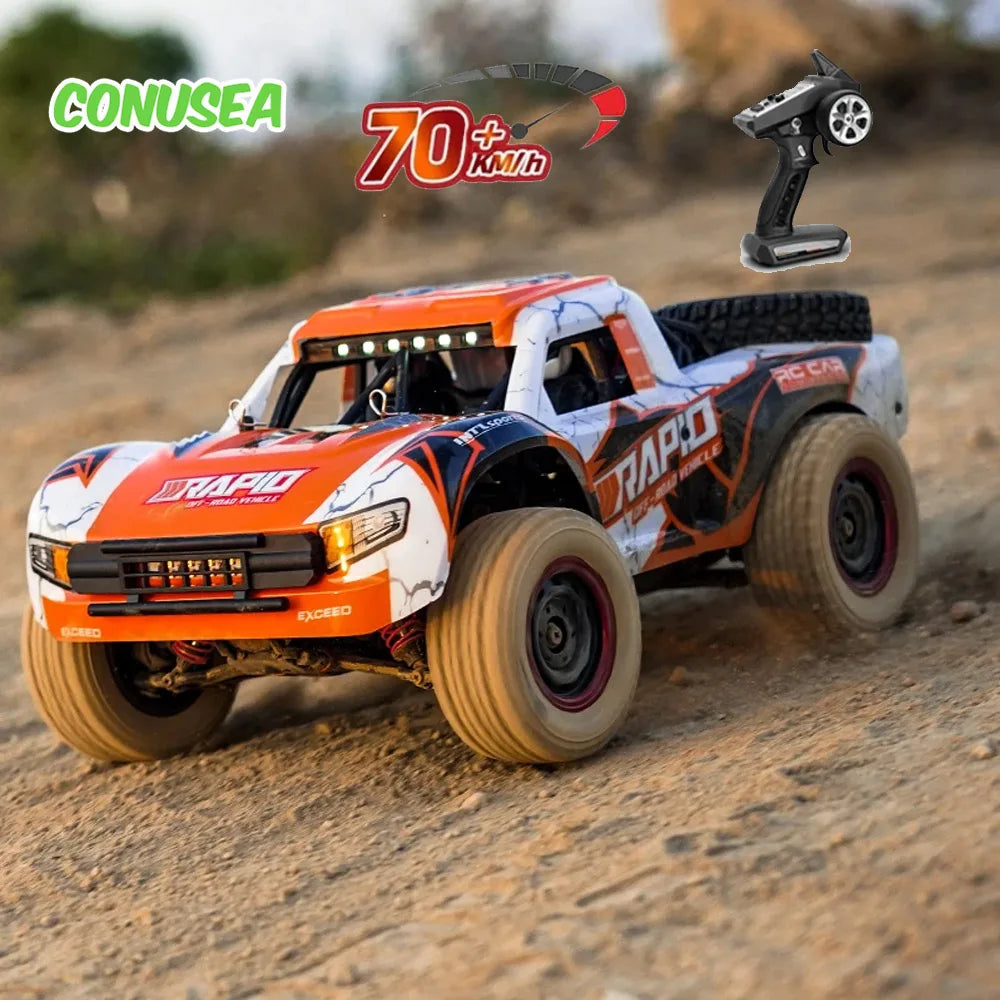

Orange Brushless version
DESCRIPTION:

Product name: four-wheel drive pickup off-road vehicle(brushless version)

Product configuration: electric all-wheel-drive SUV

Product material: Hardware + electronic components + plastic

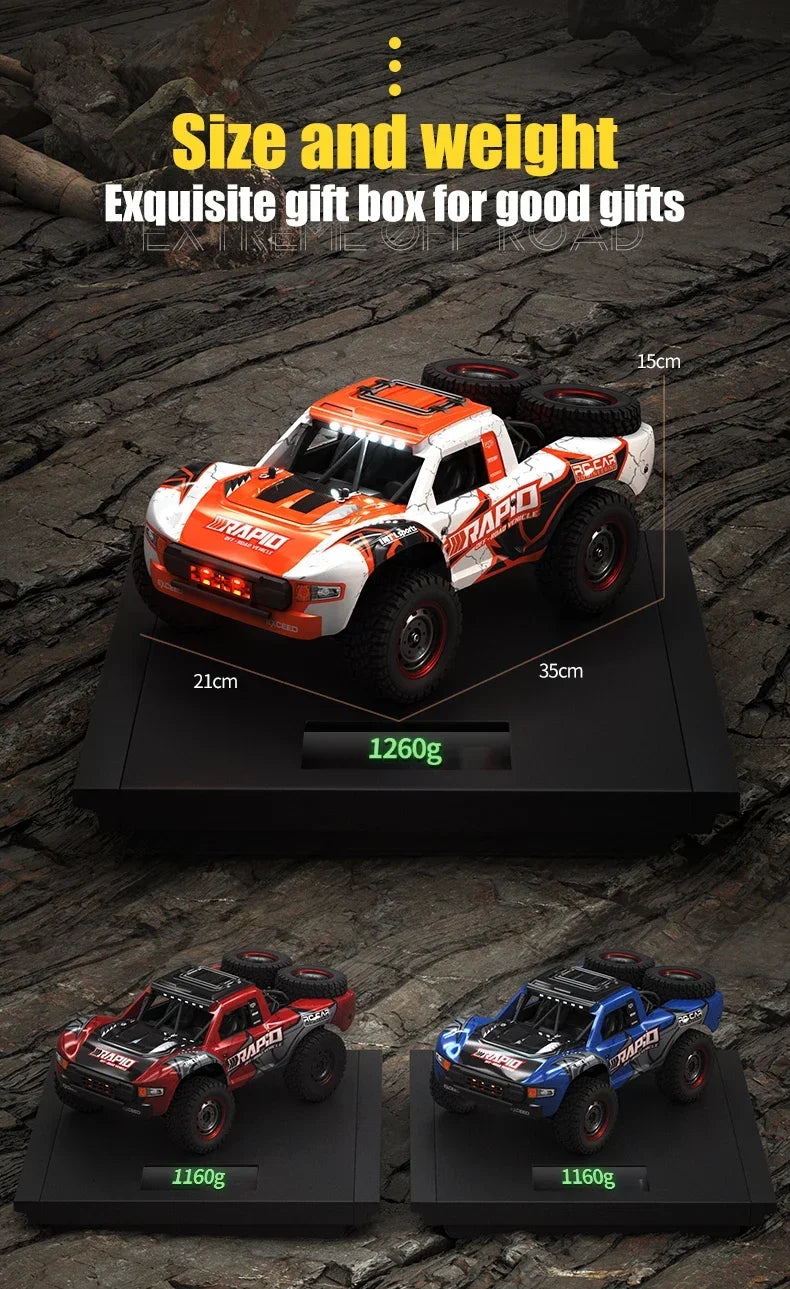

Product size: 34.5*20.5*14.8CM

Body weight: 1260g

Body battery: 7.4V, 18650-1300mAh

Remote control battery: 3*AA (not included)

Charger: USB balance charge

Usage time: 15-18 minutes (continuous accelerated running)

Charge time: 3-3.5 hours (USB balanced charge)

Remote control distance: ≥120 meters

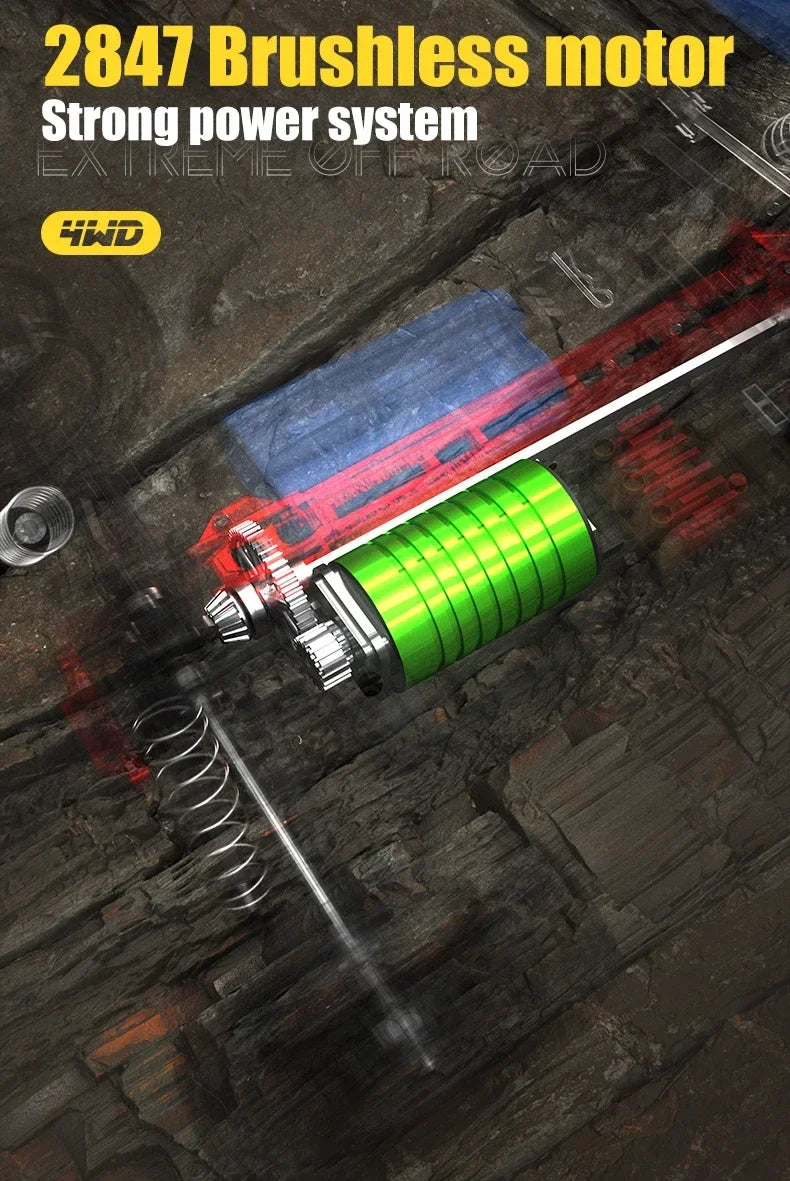

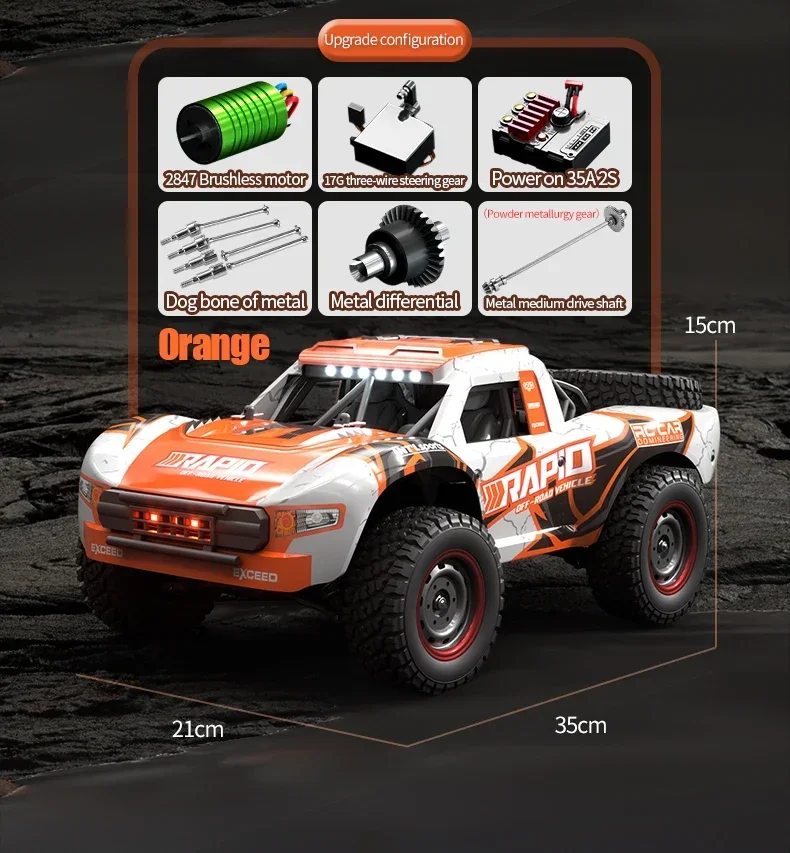

Brushless motor: 2840 brushless motor (4000 KV value)

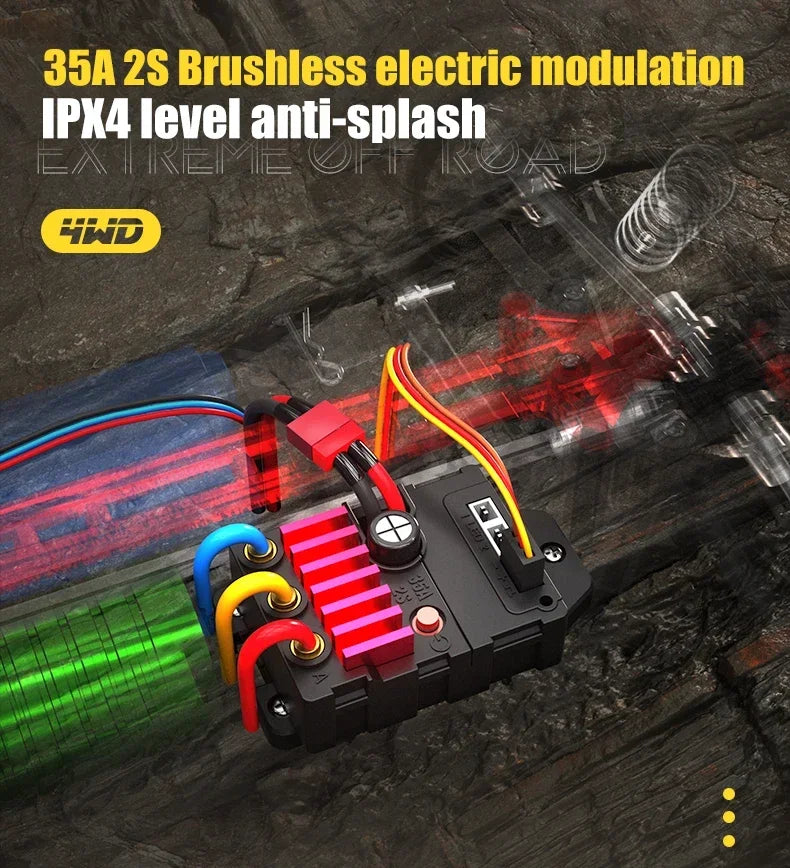

Electric modulation/Reception: 35A electric modulation/reception integrated control (anti-splash)

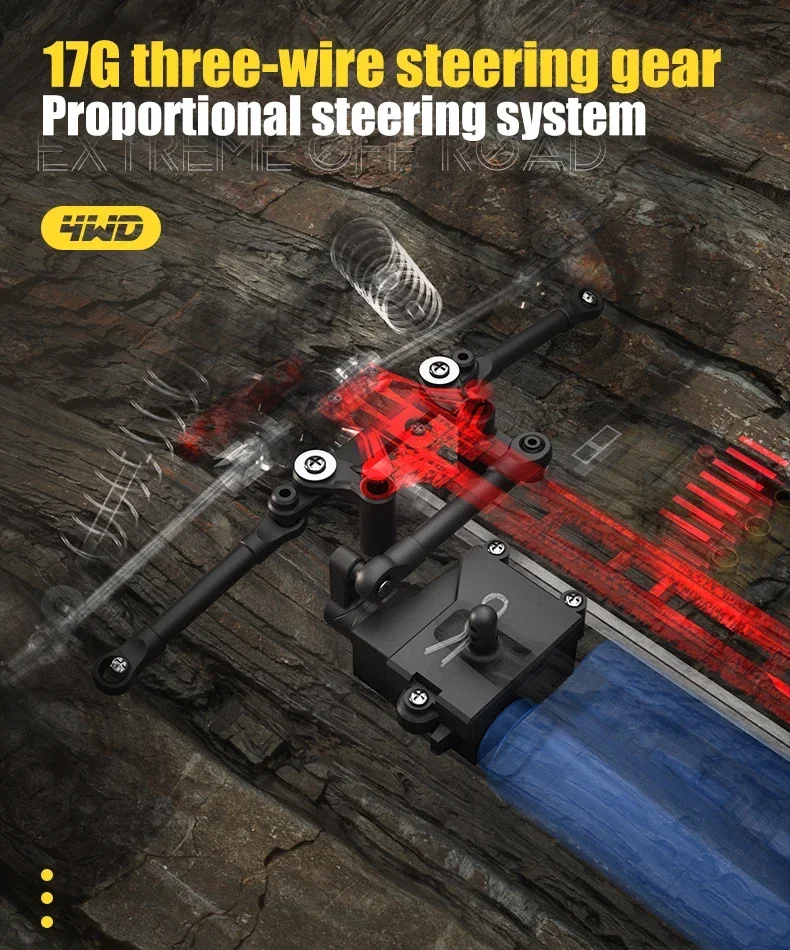

Steering gear: three-wire 17G digital steering gear

Speed: 70 km/h (top speed)

FEATURES:

1, Using the simulation structure design, with the control feeling of the real car, to achieve full scale continuously variable speed, high-speed driving, rapid acceleration, deceleration, braking, reversing, left, right turn;

2, applicable site: flat, sandy, mud, grass.

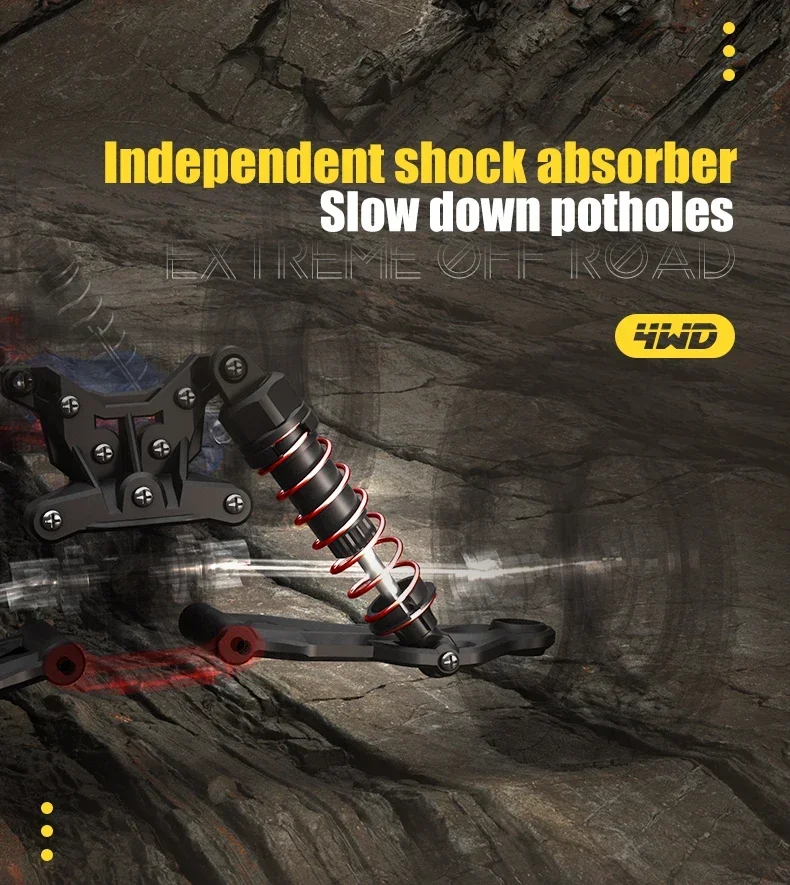

3, four-wheel drive: before and after the vertical spring shock absorption, double fork arm independent suspension system;

4, 2.4G full proportional synchronous remote control system. Full throttle/steering;

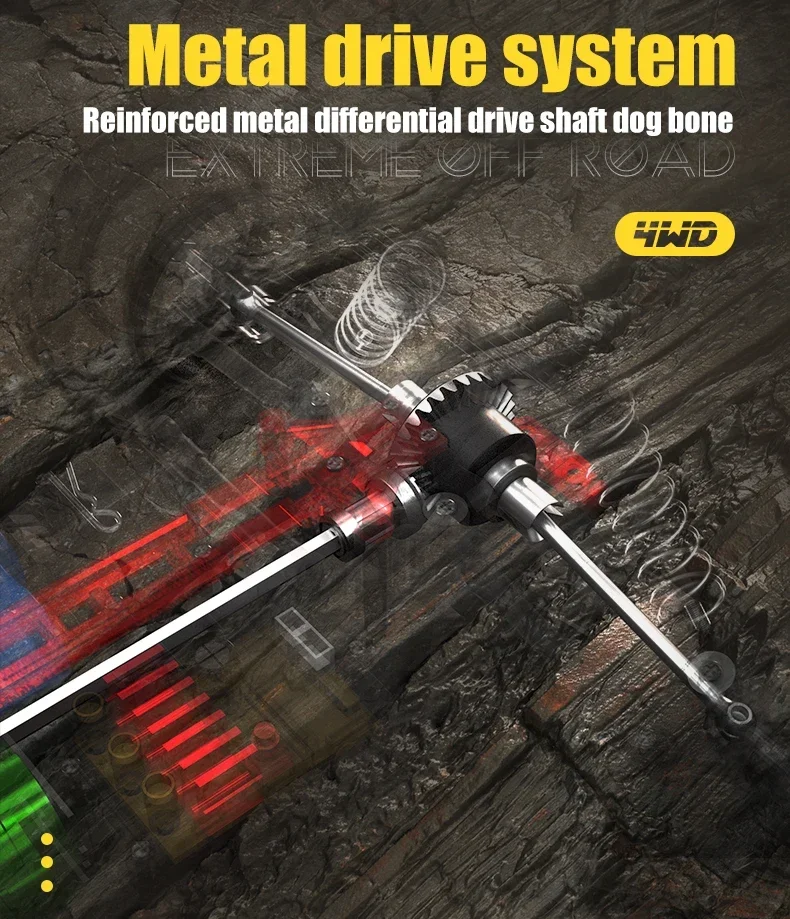

5, metal differential, metal differential cup, powder planetary gear, powder driving gear, powder main gear;

6. Metal CVD front drive shaft, metal rear dog bone, metal wheel cup;

7. Three-wire 17G digital steering gear;

8, 7.4V, 18650-1500mAh Li-ion battery (T plug), discharge rate 15C;

9, new remote control panel function: rudder size adjustment;

10, the whole car adopts 16 ball bearings;

11, metal second floor, metal front and rear arm code, metal drive shaft;

12. The car shell adopts high toughness explosion-proof PVC car shell;

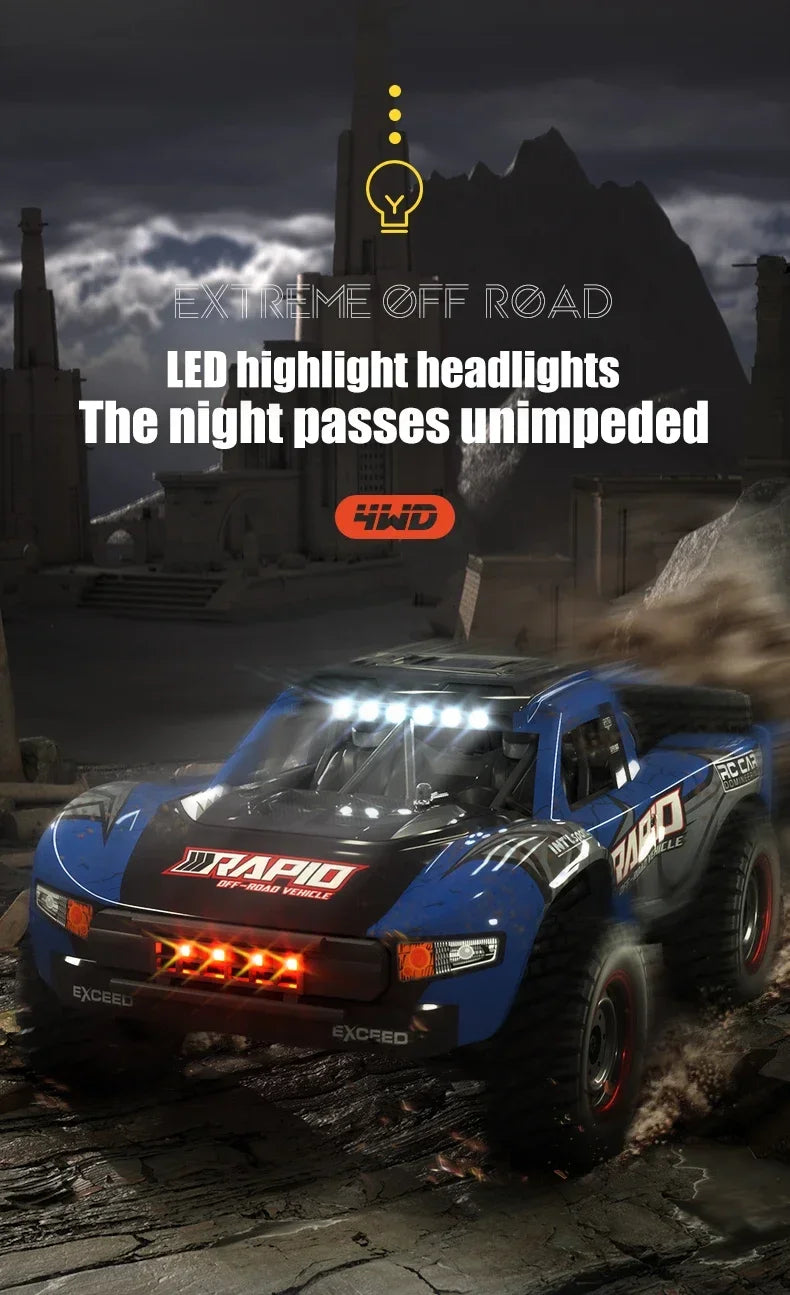

13. The car shell is equipped with LED headlight, LED roof light and LED tail roof light; (three-gear mode: steady on, slow blinking, fast blinking);

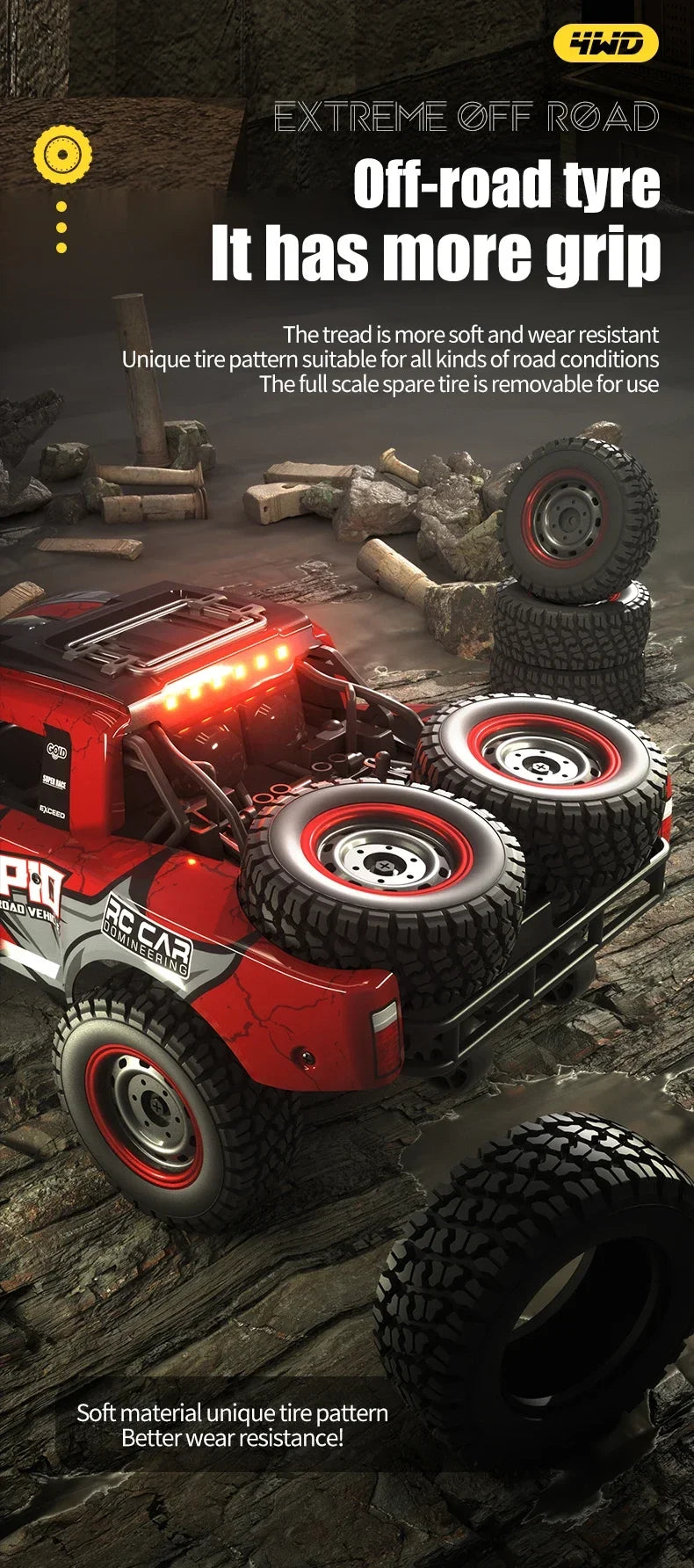

14, simulation off-road tires, strong grip;

R0801
NOTE:

1: charging protection: constant current constant voltage balance charging, the battery overcharge, overcurrent protection function.

2: motor jam protection: overload work, the motor stops working.

3: High temperature protection: when the operating temperature is higher than the setting, the drive control circuit stops working, and resume working after the temperature drops to the safe value.

4: The power down voltage power off function, the battery is lower than 6.3-6.4V, automatic power off, prevent battery overdischarge and damage.

PACKING LIST:

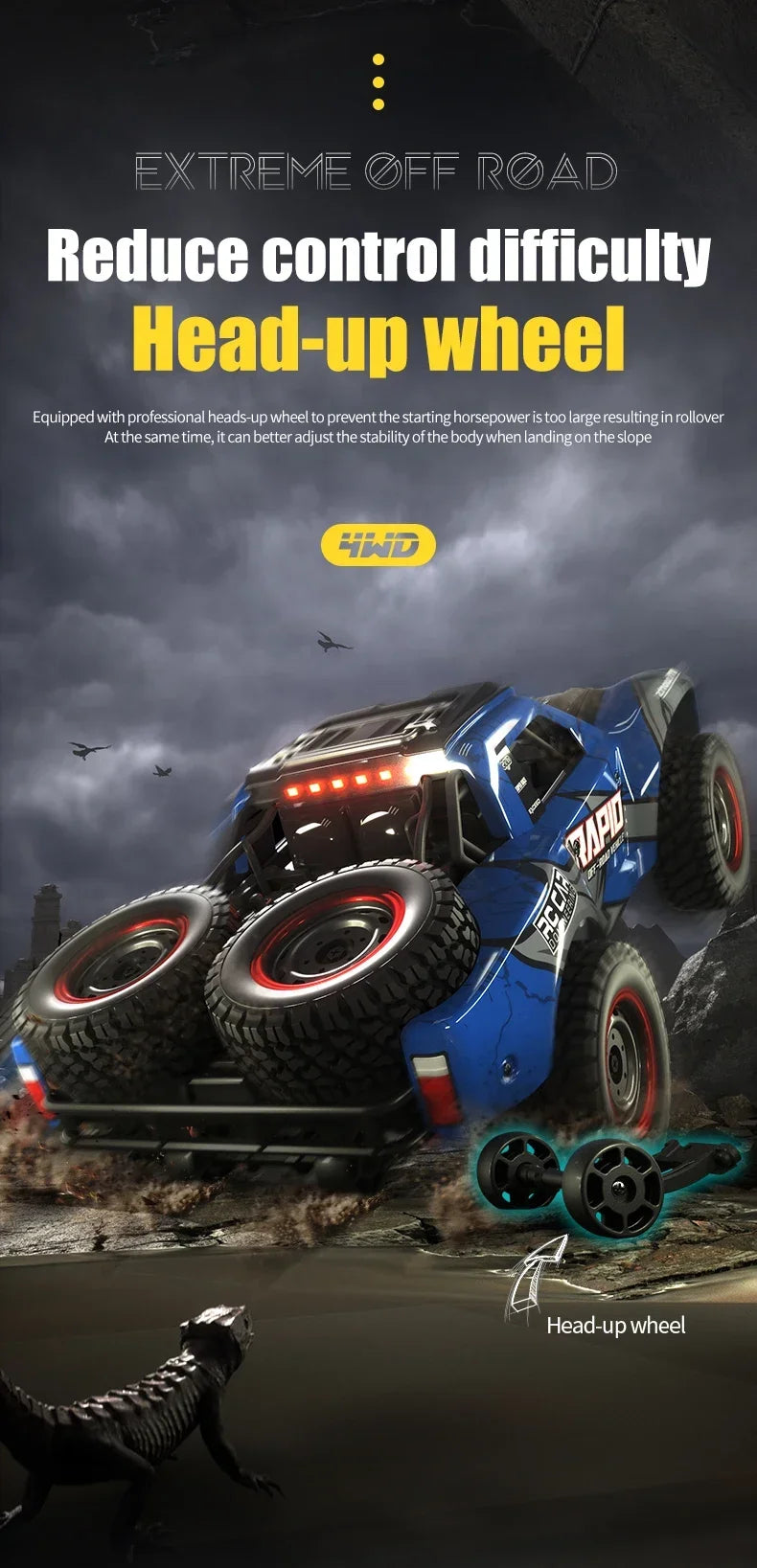

1) Complete vehicle; 2) Remote control; 3) Instructions; 4) Lithium battery; 5) USB balance charging; 6) tail wing; 7) head wheel; 8) damping adjustment buckle; 9) Metal latch; 10) hexagonal sleeve; 11) Brushless version guide insert
